QSFP28/SFP28/QSE + FMC Module

Brand: HiTech Global
Product Code: HTG-FMC-QSE
Availability: In Stock

Price: $695.00

Qty:

- OR -

Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

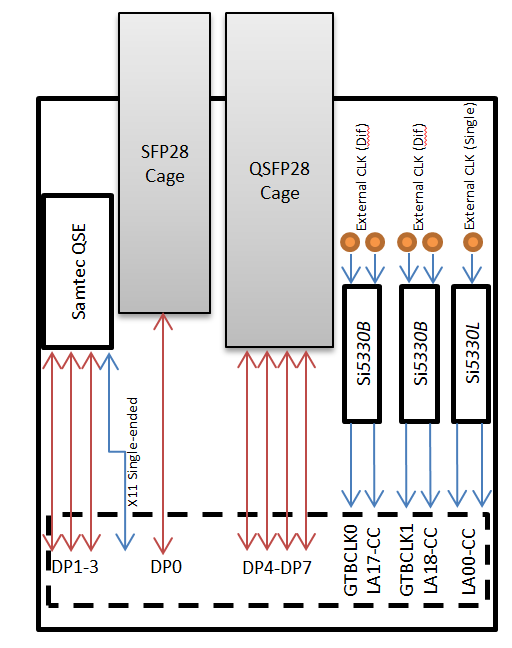

This Vita57.1 compliant FMC module is supported by one QSFP28 (100G/40G) , one SFP28 (25G/10G) and one Samtec QSE connector. Reference Clocks for the serial transceivers and FPGA are provided externally through SMA connectors and distributed by Silicon Labs Si5330L and Si5330B buffers.

Features:

►x1 QSFP28 (100G) / QSFP+ (40G/56G) Connector
►x1 SFP28 (25G) / SFP+ (10G) Connector
►x1 Samtec QSE Connector with 3 Serial Transceivers and 11 Single-ended I/Os
►x2 SMA (external differential clock)/ x1 Si5330B buffer generating differential clocks for GTBCLK0 and LA17-CC
►x2 SMA (external clock)/ x1 Si5330B buffer generating differential clocks for GTBCLK1 and LA18-CC
►x1 SMA (external single-ended clock)/x1 Si5330L buffer generating differential clock for LA00-CC
►x1EEPROM
►x1FMC Connector
